Double E-LOC

The Double E-LOC versions are suitable for cable blowing applications and are UV resistant for aerial use.

Features

Non-metallic union for cable blowing installation
Fits smooth and ribbed out duct
Fits combination smooth end/ribbed end
For PVC, steel pipe, fiberglass, and HDPE ducts
UV resistant for aerial use
Rated up to 200 PSI

Technical Specifications

Columns

Description	OD Working Range (in)	Nominal OD (in.)	Height (in)	Packaging
1.00" SDR Double E-LOC Coupler	-	1.315	5	Each
1.25" SDR Double E-LOC Coupler	-	1.66	5	Each
1.50" SDR Double E-LOC Coupler	-	1.9	5	Each
2.00" SDR Double E-LOC Coupler	-	2.375	6.25	Each

Tech Center

Go to Tech Center

Other couplers

Shur-Lock II

Shur-Lock II is a plastic coupler designed for coupling HDPE & PVC conduit. Can also be used to couple dissimilar conduits such as HDPE to PVC, threaded or non-threaded metal conduit, or fiberglass (FRP) conduit. The coupler features stainless steel band clamps (hand tightened using a 5/16" nut driver) and locking ring. A pre-lubricated O-ring forms an air-tight seal to withstand 125 PSI on 1" - 3" sizes. Also a specialized coupler for use by electrical installers requiring ETL listing. Spreader Tools are available for sizes 3", 4", and 6" to aid in the installation process.
Split-Lock +

The Split-Lock + is a split coupler produced from a glass fiber reinforced nylon resin. The coupler is heat and UV stabilized, and offers excellent impact strength. It’s reusable and is ideal for temporarily coupling conduits, particularly at slack-loop locations, and also for air-assisted jetting applications. The coupler is easily assembled using a 7/16” nut driver.
Aluminum Threaded

Tapered threads accommodate a wide range of conduit ODs within a given conduit size. Also available in a Riser/Plenum rated version and a Corrugated/Universal version.

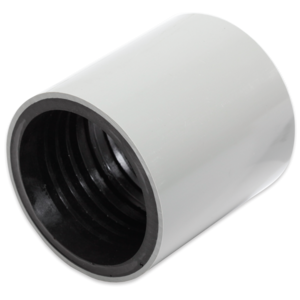

E-LOC

A low-cost push-on coupler with a molded rubber gripping insert. Can be used on HDPE, PVC, Fiberglass (FRE), and metal conduit. Transition couplers are used to join ducts with different outside diameters.

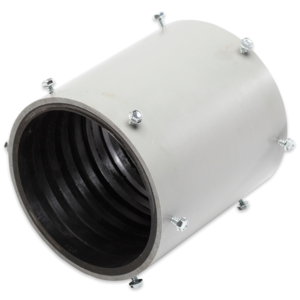

E-LOC Plus

A simple coupler to install and ideal where higher pull-out strengths are needed. The molded rubber gripping insert creates a water-tight and air-tight seal, while the additional screws aid to increase the pull-out strength.
Mor Clamp

The Mor Clamp coupling is quickly and easily installed by slipping onto or wrapping around a conduit joint. The thick neoprene gasket assures a positive butt joint seal. It accommodates a variety of conduit types including HDPE, cast iron, PVC, and fiberglass. The stainless steel design offers a lightweight and economical unit which is strong and durable. Zinc plated carbon steel bolts are included for tightening the Mor Clamp coupling.
Compression Coupler

Used to join and seal length of HDPE and PVC Duct. The internal double compression seal is created as the end caps are tightened. NOTE: PVC compression couplers are not recommended for high-pressure air or gas lines, or applications requiring high pull-out resistance.
Smooth-Cor Flex Kit

Quick, field assembly couplers or adapters to join different material types
Armor Guard Kit

Used with Armor Guard Conduit, the Armor Guard Kit is comprised of a Split-Lock + Coupler, a ScotchLok shield connector, and bonding braid for bonding and grounding the armored layer in the duct. This coupler arrangement is suitable for cable blowing applications.
