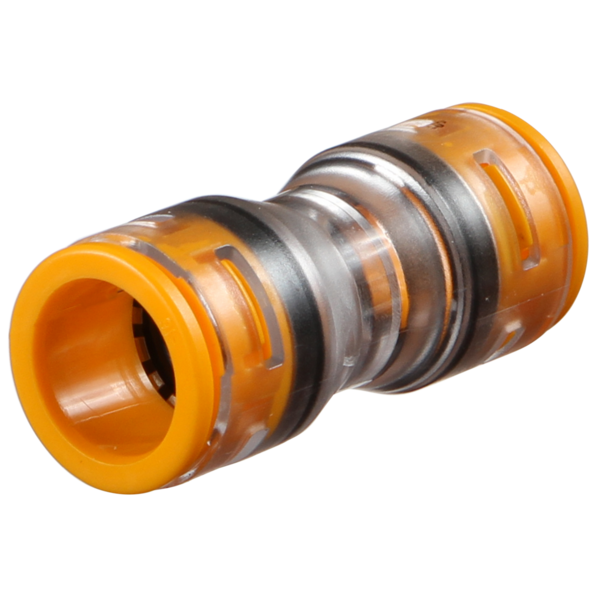

Micro Couplers

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm
Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm

Features

  • Easy assembly/disassembly, no tools required
  • Provide an air- and water-tight connection
  • Color coded by size
  • Tested to meet or exceed the stringent requirements of CENELEC EN 50411-2-8:2009 Standard for MicroDuct Connectors, for Air Blown Optical Fibers
  • Low profile design
  • Approved for use at 232PSI/16Bar
  • "HD" or "Heavy Duty" denotes enhanced pull-out and pressure characteristics
Ask your question
Micro Couplers

Technical Details

Select Coupler type

Straight
Straight
Transition
Description
5mm Straight Coupler 5/3.5mm (OD/ID)
Description
7mm Straight Coupler 7/5.5mm (OD/ID)
Description
8.5mm Straight Coupler 8.5/6mm (OD/ID)
Description
12mm Straight Coupler 12/8mm (OD/ID)
Description
12.7mm Straight Coupler 12.7/10mm (OD/ID)
Description
16mm Straight Coupler 16/12mm (OD/ID)
Description
18mm Straight Coupler 18/14mm (OD/ID)
Description
22mm Straight Coupler 22/18mm (OD/ID)
Description
6mm Straight Coupler 6/3mm (OD/ID)
Description
8mm Straight Coupler 8/6mm (OD/ID)
Description
10mm Straight Coupler 10/8mm (OD/ID)
Description
12mm Straight Coupler 12/10mm (OD/ID)
Description
14mm Straight Coupler 14/10mm (OD/ID)
Description
16mm Straight Coupler 16/13mm (OD/ID)
Description
22mm Straight Coupler 22/16mm (OD/ID)
Description
27mm Straight Coupler 27/20mm (OD/ID)

Other MicroAccessories

Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.

Micro End Caps

Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.
FuturePath Splice Kits provide all the necessary components to join segments of FuturePath. Kits include correct size of sleeve, couplers, sealant strips, vinyl tape and locate wire connector.

Splice Kits

FuturePath Splice Kits provide all the necessary components to join segments of FuturePath. Kits include correct size of sleeve, couplers, sealant strips, vinyl tape and locate wire connector.
Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.

MicroDuct Cutters

Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.
The MicroDuct organizer was designed to organize MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed. When ordering the Mounting Plate, please note you will also need to order a Mounting Bracket to complete the first row.

MicroDuct Mounting Bracket

The MicroDuct organizer was designed to organize MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed. When ordering the Mounting Plate, please note you will also need to order a Mounting Bracket to complete the first row.
Gas Block Connectors provide a simple and effective gas seal between the MicroDuct and the fiber cable to prevent gas, water, or moisture from entering the duct. The connector creates a seal around the installed cable.

Gas Block Connector

Gas Block Connectors provide a simple and effective gas seal between the MicroDuct and the fiber cable to prevent gas, water, or moisture from entering the duct. The connector creates a seal around the installed cable.
Recommended MicroDuct and FuturePath enclosure connector for OSP applications. Used to join Dura-Line's MicroTechnology products to assorted cabinets. Bulkhead Connectors are also available in sizes 8.5mm and 12.7mm

FuturePath Enclosure Connector

Recommended MicroDuct and FuturePath enclosure connector for OSP applications. Used to join Dura-Line's MicroTechnology products to assorted cabinets. Bulkhead Connectors are also available in sizes 8.5mm and 12.7mm
The MicroDuct Distribution Box or MDB is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors.

Distribution Box

The MicroDuct Distribution Box or MDB is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors.
